5499922-8 TE Connectivity | PCBX Electronics

5499922-8

Manufacturer:

TE Connectivity

Mfr.Part #:

5499922-8

Datasheet:

Description:

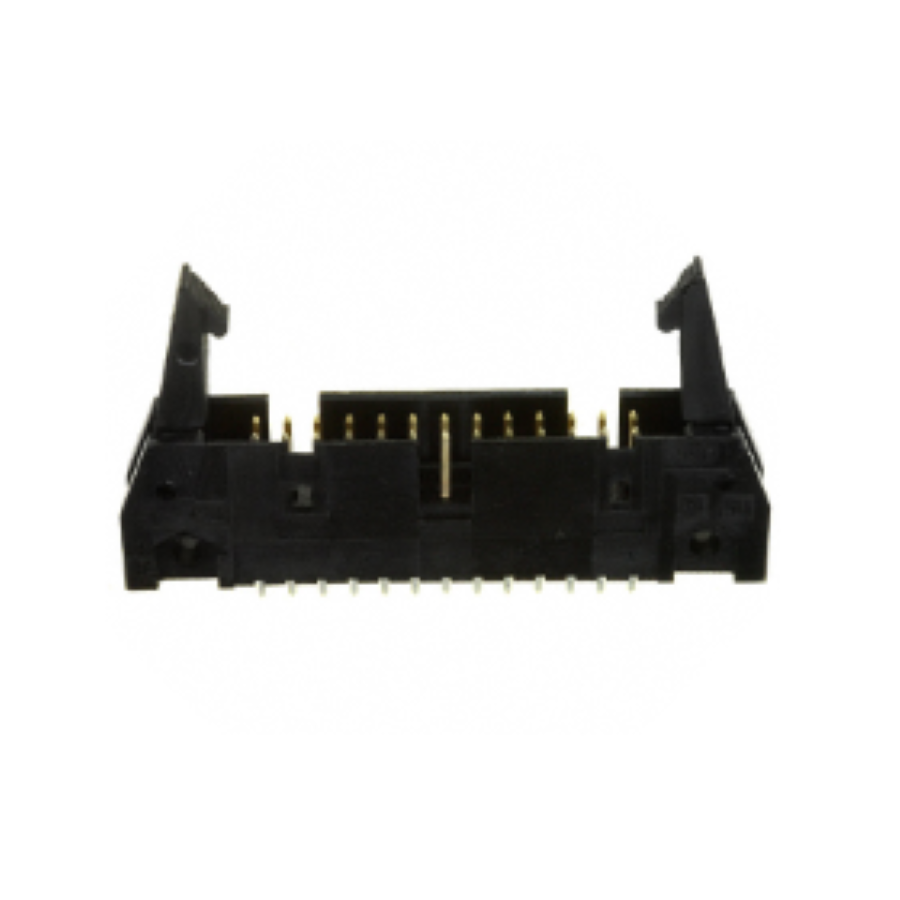

Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:34 Pitch:2.54 mm

Parameter	Value
Length	62.484 mm
Termination	Through Hole
Max Operating Temperature	105 °C
Min Operating Temperature	-65 °C
Height	13.94 mm
Packaging	Tray
Voltage Rating	250 V
Depth	8.53 mm
Lead Free	Lead Free
Radiation Hardening	No
RoHS	Compliant
Lead Pitch	2.54 mm
Insulation Resistance	5 GΩ
REACH SVHC	Unknown
Contact Plating	Tin, Gold
Lead Length	2.79 mm
Contact Material(Contact Finish)	Brass
Pitch	2.54 mm
Current Rating	1 A
Flammability Rating	UL94 V-0
Orientation	Vertical
Operating Supply Voltage	250 V
Lifecycle Status	Production (Last Updated: 4 days ago)
Color	Black
Gender	Pin (Male)
Number of Contacts	34
Connector Type	Header, Pin, Plug
Number of Positions	34
Number of Rows	2
Row Spacing	2.54 mm
Housing Material	Thermoplastic
Fastening Type	Latch
Circuit Application	Signal
Connector System	Wire-to-Board
Max Voltage Rating (AC)	250 V
Contact Current Rating	1 A
Housing Color	Black
Contact Mating Length	6.096 mm
PCB Mounting Orientation	Vertical
PCB Thickness	1.57 mm
Plating Thickness	2.54 µm
Contact Gender	Male
Mating Post Length	6.1 mm
Contact Shape	Square
Shrouded End Dimension	3.81 mm
Manufacturer Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Mating Connector Lock	With
Termination Post Length	2.79 mm
PCB Mount Retention	Without

Distributors

pcbx

Unit Price$4.16180

Ext.Price$4.16180
